BALL VALVE

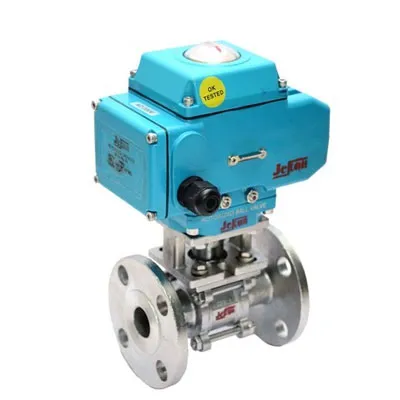

Motorized Ball Valve

Jackon valves is a leading manufacturer and supplier fabricating innovative series of ball valves. We cater varied process industries with our wide range of motorized valves. Our valves are designed and tested with international standards of manufacturing and testing.

Jackon valves motorized ball valves are available with single piece, 2 piece and 3 piece model. Motorized ball valve contains electric power for the functions open and close.

It is provided with different cycle times as per applications. It is also provided with facility to operate manually. It is used to regulate, direct or control the flow of different liquids as well as of a gases, semi solids and slurries.

We possess technologically advanced production amenities and sufficient stock of raw materials. Valve body is made from varied construction materials like brass, carbon steel, stainless steel, monel and alloy 20.

  • Overload protection for temperature
  • Smooth operation
  • Long lasting working life
  • Rigid drive system
  • Repair and replacement without removing valve body
  • Highly durable

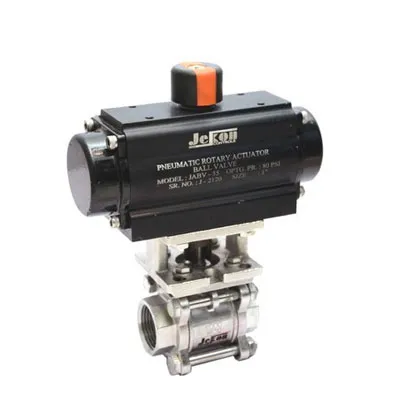

Actuator Ball Valve

Ball valves are generally used to allow uniform sealing. Valve contains ball for the open and close functions and assist tight shut-off. It is widely used for the liquids, slurries and gases. It is provided with simple design to make ease of operation. It can be also designed to regulate large volume of flow.

We have developed economic series of actuator ball valve that are available with industry leading prices and least maintenance cost.
Design of the valve facilitates the repair of replacement of components like seals and seats without disturbing valve body from the system. It offers best performance with auto lubrication.

The series of actuator ball valve is efficiently used for different kinds of chemicals. Be aware of the usage of our valve’s operational area, we have constructed our actuator PP ball valve device with best grade material.

Our focused fabrication unit contains highly qualified professionals to manufacture exact components as per design. Our valve device is made as per international standard using best grade material.

  • Robust construction
  • Least maintenance
  • Corrosion resistant
  • Better performance

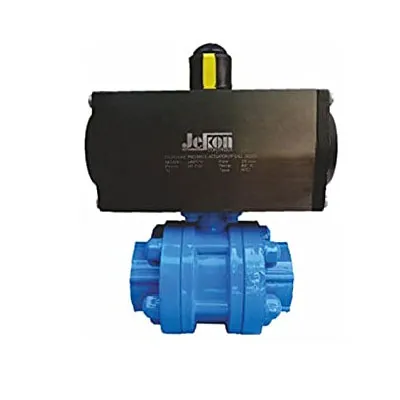

Actuator PP Ball Valve

Our robust series of actuator PP ball valve contains specially designed motor with higher torques. Series of polypropylene ball valve with actuator is available with varied range of size and configurations.

 It is designed to use with varied kinds of liquids, gases and semi solid materials. It is designed with considering maintenance and durability. It contains easy and simple mechanism to connect and disconnect the wiring. It is properly controlled with perfectly programmed actuator.

It is also designed for high temperature and high pressure applications for different industrial applications. Having state of the art manufacturing facility, we design, manufacture and supply actuator ball valve with rigid construction. It is available with long lasting service life. It is fabricated as per global standard.

  • Precise actuation
  • Anti corrosive
  • Tight shut off
  • Leakage proof
  • High performance
  • Highly durable
  • Minimum maintenance

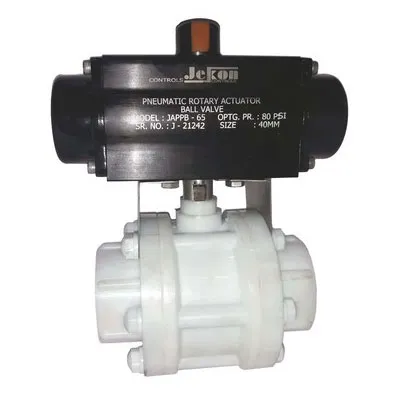

PP Ball Valves

Ball valves contain vast application area in industry. Ball is provided for open and close operations. Our PP ball valves are mostly used in plumbing applications. It is also used in buildings and in process lines of varied industries. It is used to provide industrial water supply. We are marked as foremost manufacturer and supplier of PP ball valves.

We have designed vast range of size and configurations. We strictly follow international norms and conditions for the fabrication of the PP ball valves. It is a fabricated using high grade polypropylene.

It is used in agriculture for drip irrigation and for other agricultural applications. It is also used in dye houses. PP ball valves are used in many different industrial processes. It is used in paper and sugar industry. It is also used for many domestic applications.

  • Reasonable range
  • Longer service life
  • Long lasting working life
  • Least maintenance

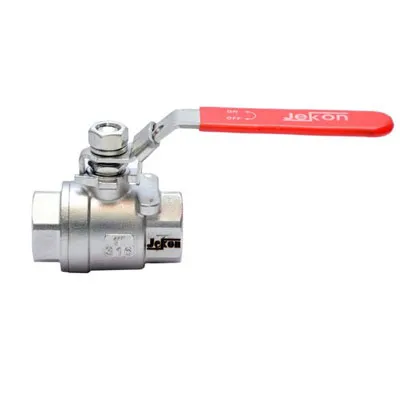

High Pressure Ball Valves

We offer widest range of high pressure ball valves with varied configurations. Our series is offered with working pressure of 150 PSIG to 800 PSIG. We offer high pressure ball valves with the size range of ½” to 2”. It is demanded in Indian as well as in foreign market for so many applications like water, oil and gas.

Our entire range of high pressure ball valves are designed as per global standard. It is designed and fabricated as per BS 5351, API 602. Varied options are provided as per applications. It is provided with end connection options like BSPT, NPT, SOCKET WELD and BSP. It is tested confirming API 598 and BS: 5146. It is socket weld and threaded as per ANSI 16.11/ANSI B 1.20.1.

We have minutely designed our series of high pressure ball valves. To offer better précising of fabrication, we have developed good manufacturing practices with highly advanced facilities.
We make use of best grade material. We use cast iron, cast steel, Stainless steel 304 and 316. Ball, gland packing and stem is made with AISI 304 and AISI 316. Seat ring and stem seal are made from PTFE.

  • Reliable series
  • Global quality standards
  • Maintenance free series
  • Reasonable range

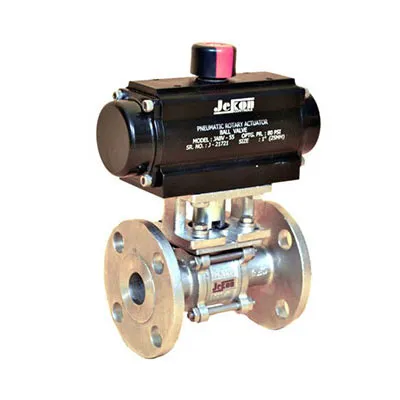

Pneumatics Actuator Ball Valve

With best engineering practices, we have designed a great series of
Butterfly Valve with single acting and double acting actuator. Our series of pneumatics actuator ball valve is available with three piece design.

Many other options are provided for construction material and end connections. It is fabricated from CF8, CF8M, P.P., WCB and C.S. designs and construction material together made best suitable device for the applications for varied material concentration and kind of media.

It is also made to be suitable to wide range of temperature and pressure. It is offered with screwed, flanged, socket weld and triclover alternatives for ends. We offer size range from ½” to 10”.

  • Perfect actuation
  • Leakage proof
  • Tight shut off
  • Longer service life
